* This class is shared by the client thread (for partitioning) and the background sender thread. * * Metadata is maintained for only a subset of topics, which can be added to over time. When we request metadata for a * topic we don't have any metadata for it will trigger a metadata update. *

* If topic expiry is enabled for the metadata, any topic that has not been used within the expiry interval * is removed from the metadata refresh set after an update. Consumers disable topic expiry since they explicitly * manage topics while producers rely on topic expiry to limit the refresh set. */ public final class Metadata { ... public synchronized Cluster fetch() public synchronized void add(String topic) public synchronized long timeToNextUpdate(long nowMs) public synchronized int requestUpdate() public synchronized boolean updateRequested() public synchronized void awaitUpdate(final int lastVersion, final long maxWaitMs) ... } ``` * `org.apache.kafka.clients.producer.KafkaProducer#waitOnMetadata` ```java /** * Wait for cluster metadata including partitions for the given topic to be available. * @param topic The topic we want metadata for * @param partition A specific partition expected to exist in metadata, or null if there's no preference * @param maxWaitMs The maximum time in ms for waiting on the metadata * @return The cluster containing topic metadata and the amount of time we waited in ms */ private ClusterAndWaitTime waitOnMetadata(String topic, Integer partition, long maxWaitMs) throws InterruptedException { /** * metadata维护了topic和过期时间的Map结构(即 topic expiry)：Map topics; * add 会判断是否命中了Map且时间过期判断并更新，否则要进行Metadata的更新（由sender线程负责更新） * 注：add方法在新增topic时候才会`requestUpdateForNewTopics`，更新标记（Metadata的成员属性needUpdate） */ // add topic to metadata topic list if it is not there already and reset expiry metadata.add(topic); Cluster cluster = metadata.fetch(); Integer partitionsCount = cluster.partitionCountForTopic(topic); // Return cached metadata if we have it, and if the record's partition is either undefined // or within the known partition range // 指定分区空，或者是小于分区总数的和合理值，就返回 if (partitionsCount != null && (partition == null || partition < partitionsCount)) return new ClusterAndWaitTime(cluster, 0); long begin = time.milliseconds(); long remainingWaitMs = maxWaitMs; long elapsed; // Issue metadata requests until we have metadata for the topic or maxWaitTimeMs is exceeded. // In case we already have cached metadata for the topic, but the requested partition is greater // than expected, issue an update request only once. This is necessary in case the metadata // is stale and the number of partitions for this topic has increased in the meantime. do { // 需要更新元数据信息，并唤醒 sender 线程，去完成元数据更新 log.trace("Requesting metadata update for topic {}.", topic); metadata.add(topic); int version = metadata.requestUpdate(); sender.wakeup(); try { // 开始更新元数据，否则要抛出 TimeoutException metadata.awaitUpdate(version, remainingWaitMs); } catch (TimeoutException ex) { // Rethrow with original maxWaitMs to prevent logging exception with remainingWaitMs throw new TimeoutException("Failed to update metadata after " + maxWaitMs + " ms."); } cluster = metadata.fetch(); elapsed = time.milliseconds() - begin; if (elapsed >= maxWaitMs) throw new TimeoutException("Failed to update metadata after " + maxWaitMs + " ms."); if (cluster.unauthorizedTopics().contains(topic)) throw new TopicAuthorizationException(topic); remainingWaitMs = maxWaitMs - elapsed; partitionsCount = cluster.partitionCountForTopic(topic); } while (partitionsCount == null); if (partition != null && partition >= partitionsCount) { throw new KafkaException( String.format("Invalid partition given with record: %d is not in the range [0...%d).", partition, partitionsCount)); } return new ClusterAndWaitTime(cluster, elapsed); } ``` 元数据部分总结 1. KafkaProducer主线程和sender线程通过wait/notify同步。主线程负责发出更新信号和读取元数据，sender线程负责更新集群元数据 2. 为了避免频繁更新元数据给服务端造成压力，Metadata两次更新时间间隔不能小于refreshBackOffMs设计 3. Metadata使用version来表示元信息的版本，更新后版本就加1，通过比较新旧版本来判断Metadata是否更新完成 4. Metadata不是存放所有topic信息，而是维护使用到的topic的信息 #### 元数据更新重难点 刷新metadata并不仅在第一次初始化时做。为了能适应kafka broker运行中因为各种原因挂掉、partition改变等变化，eventHandler会定期的再去刷新一次该metadata，刷新的间隔用参数topic.metadata.refresh.interval.ms定义，默认值是10分钟 * 调用send, 才会新建SyncProducer，只有调用send才会去定期刷新metadata在每次取metadata时，kafka会新建一个SyncProducer去取metadata，逻辑处理完后再close。 * 根据当前SyncProducer(一个Broker的连接)取得的最新的完整的metadata，刷新ProducerPool中到broker的连接.每10分钟的刷新会直接重新把到每个broker的socket连接重建，意味着在这之后的第一个请求会有几百毫秒的延迟。如果不想要该延迟，把topic.metadata.refresh.interval.ms值改为-1，这样只有在发送失败时，才会重新刷新。 * Kafka的集群中如果某个partition所在的broker挂了，可以检查错误后重启重新加入集群，手动做rebalance，producer的连接会再次断掉，直到rebalance完成，那么刷新后取到的连接着中就会有这个新加入的broker。 #### 序列化 Producer 端会对 record 的 key 和 value 值进行序列化操作，那么显然也会在 Consumer 端再进行相应的反序列化； Kafka 内部提供提供了序列化和反序列化算法 #### 计算 record 要发送到的 partition？ 未指定分区的情况下，默认的分区策略如下： * 如果指定了partition就用指定的，否则有一个partition方法来计算 ```java /** * computes partition for given record. * if the record has partition returns the value otherwise * calls configured partitioner class to compute the partition. */ private int partition(ProducerRecord record, byte[] serializedKey, byte[] serializedValue, Cluster cluster) { Integer partition = record.partition(); return partition != null ? partition : partitioner.partition( record.topic(), record.key(), serializedKey, record.value(), serializedValue, cluster); } ``` * 没有指明 partition 值, 但有 key 的情况下，将 key 的 hash 值与 topic 的 partition 数进行取余得到 partition 值； * 没有指明 partition 值, 且没有 key 值的情况下，第一次调用时随机生成一个整数（后面每次调用在这个整数上自增），将这个值与 topic 可用的 partition 总数取余得到 partition 值（即 round-robin 算法） ```java public int partition(String topic, Object key, byte[] keyBytes, Object value, byte[] valueBytes, Cluster cluster) { List partitions = cluster.partitionsForTopic(topic); int numPartitions = partitions.size(); if (keyBytes == null) {// 没有指定 key 的情况下 int nextValue = nextValue(topic); // 第一次的时候产生一个随机整数,后面每次调用在之前的基础上自增; List availablePartitions = cluster.availablePartitionsForTopic(topic); // leader 不为 null,即为可用的 partition if (availablePartitions.size() > 0) { int part = Utils.toPositive(nextValue) % availablePartitions.size(); return availablePartitions.get(part).partition(); } else { return Utils.toPositive(nextValue) % numPartitions; } } else {// 有 key 的情况下,使用 key 的 hash 值进行计算 return Utils.toPositive(Utils.murmur2(keyBytes)) % numPartitions; // 选择 key 的 hash 值 } } // 根据 topic 获取对应的整数变量 private int nextValue(String topic) { AtomicInteger counter = topicCounterMap.get(topic); if (null == counter) { // 第一次调用时，随机产生 counter = new AtomicInteger(new Random().nextInt()); AtomicInteger currentCounter = topicCounterMap.putIfAbsent(topic, counter); if (currentCounter != null) { counter = currentCounter; } } return counter.getAndIncrement(); // 后面再调用时，根据之前的结果自增 } ``` 当然也可以自己实现`Partitioner`接口

accumulator.append()

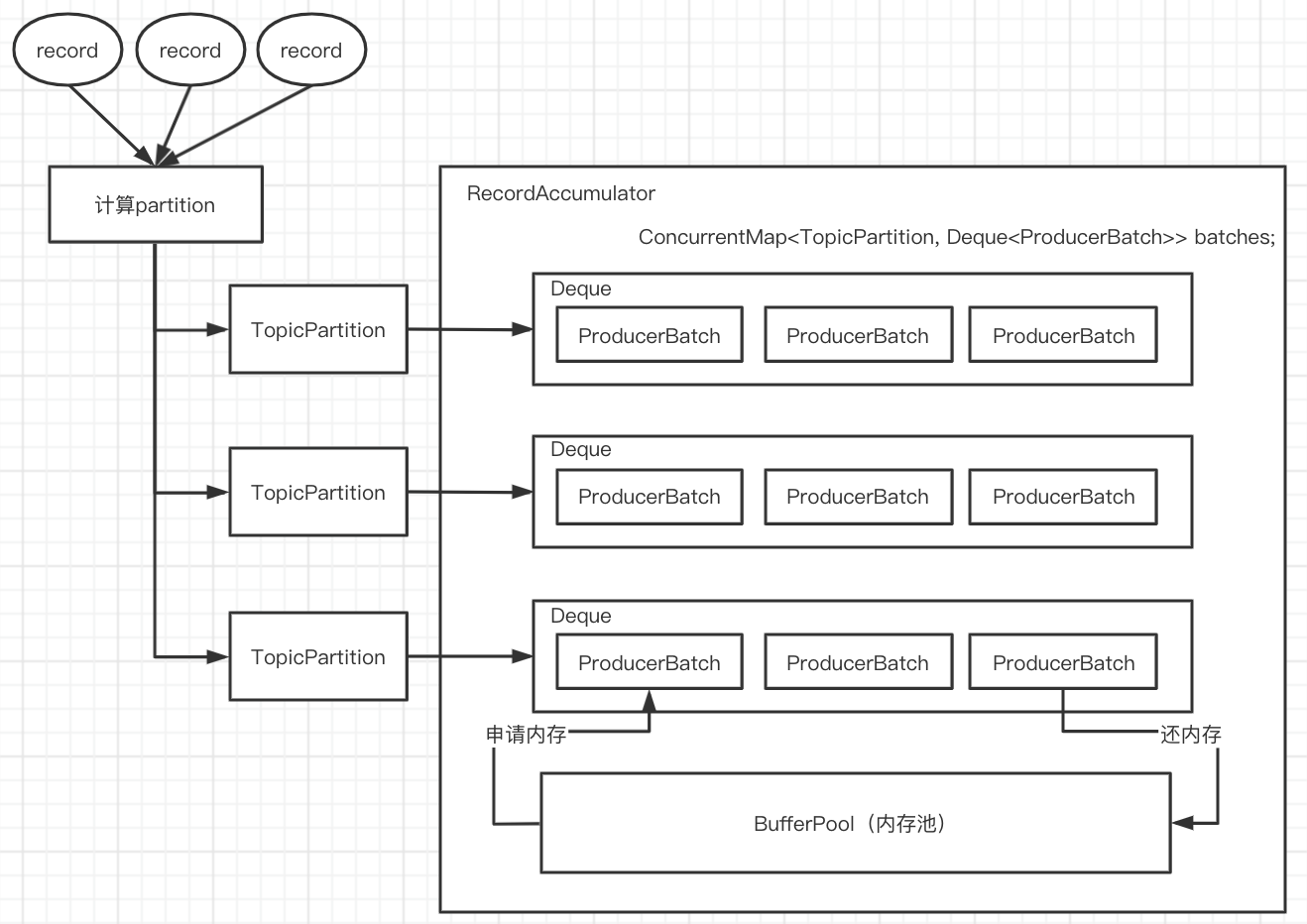

RecordAccumulator

/**
 * This class acts as a queue that accumulates records into {@link MemoryRecords}
 * instances to be sent to the server.
 * <p>
 * The accumulator uses a bounded amount of memory and append calls will block when that memory is exhausted, unless
 * this behavior is explicitly disabled.
 */
public final class RecordAccumulator {

    private final Logger log;
    // RecordAccumulator是否关闭的标志位closed
    private volatile boolean closed;
    // flushes过程计数器flushesInProgress
    private final AtomicInteger flushesInProgress;
    // appends过程计数器appendsInProgress
    private final AtomicInteger appendsInProgress;
    // 批量大小batchSize
    private final int batchSize;
    // 压缩器类型CompressionType实例compression
    private final CompressionType compression;
    // 延迟时间lingerMs
    private final long lingerMs;
    // 重试时间retryBackoffMs
    private final long retryBackoffMs;
    // 缓冲池BufferPool类型的free
    private final BufferPool free;
    private final Time time;
    private final ApiVersions apiVersions;
    // TopicPartition到RecordBatch双端队列的ConcurrentMap集合
    private final ConcurrentMap<TopicPartition, Deque<ProducerBatch>> batches;
    // 处于完成状态的批量记录IncompleteRecordBatches类型的incomplete
    private final IncompleteBatches incomplete;
    // The following variables are only accessed by the sender thread, so we don't need to protect them.
    private final Set<TopicPartition> muted;
    private int drainIndex;
    private final TransactionManager transactionManager;

append方法的源码流程

/**
 * Add a record to the accumulator, return the append result
 * <p>
 * The append result will contain the future metadata, and flag for whether the appended batch is full or a new batch is created
 * <p>
 *
 * @param tp The topic/partition to which this record is being sent
 * @param timestamp The timestamp of the record
 * @param key The key for the record
 * @param value The value for the record
 * @param headers the Headers for the record
 * @param callback The user-supplied callback to execute when the request is complete
 * @param maxTimeToBlock The maximum time in milliseconds to block for buffer memory to be available
 */
public RecordAppendResult append(TopicPartition tp,
                                 long timestamp,
                                 byte[] key,
                                 byte[] value,
                                 Header[] headers,
                                 Callback callback,
                                 long maxTimeToBlock) throws InterruptedException {
    // We keep track of the number of appending thread to make sure we do not miss batches in
    // abortIncompleteBatches().
    appendsInProgress.incrementAndGet();
    ByteBuffer buffer = null;
    if (headers == null) headers = Record.EMPTY_HEADERS;
    try {
        /**
         * 获取(或创建)对应的deque
         */
        // check if we have an in-progress batch
        Deque<ProducerBatch> dq = getOrCreateDeque(tp);
        synchronized (dq) {
            if (closed)
                throw new IllegalStateException("Cannot send after the producer is closed.");
            /**
             * 尝试往队列添加数据
             *  数据需要添加到`ProducerBatch`中，需要内存;第一次还没有`ProducerBatch`，会失败
             */
            RecordAppendResult appendResult = tryAppend(timestamp, key, value, headers, callback, dq);
            if (appendResult != null)
                return appendResult;
        }

        /**
         * 计算一个`ProducerBatch`的大小，从`BufferPool`线程池中申请,默认的batchSize=16k
         *  如果一个record的大小超过了一个batchSize，那么一个record就是一个`ProducerBatch`,数据一条一条的发送
         */
        // we don't have an in-progress record batch try to allocate a new batch
        byte maxUsableMagic = apiVersions.maxUsableProduceMagic();
        int size = Math.max(this.batchSize, AbstractRecords.estimateSizeInBytesUpperBound(maxUsableMagic, compression, key, value, headers));
        log.trace("Allocating a new {} byte message buffer for topic {} partition {}", size, tp.topic(), tp.partition());
        buffer = free.allocate(size, maxTimeToBlock);
        synchronized (dq) {
            // Need to check if producer is closed again after grabbing the dequeue lock.
            if (closed)
                throw new IllegalStateException("Cannot send after the producer is closed.");
            /**
             * 继续尝试添加到`ProducerBatch`中
             *  第一次申请的内存还没有生成一个`ProducerBatch`,所以append还是会失败
              */
            RecordAppendResult appendResult = tryAppend(timestamp, key, value, headers, callback, dq);
            if (appendResult != null) {
                // Somebody else found us a batch, return the one we waited for! Hopefully this doesn't happen often...
                return appendResult;
            }

            /**
             * 去创建`ProducerBatch`
             */
            MemoryRecordsBuilder recordsBuilder = recordsBuilder(buffer, maxUsableMagic);
            ProducerBatch batch = new ProducerBatch(tp, recordsBuilder, time.milliseconds());
            /**
             * 继续尝试添加到`ProducerBatch`中
             */
            FutureRecordMetadata future = Utils.notNull(batch.tryAppend(timestamp, key, value, headers, callback, time.milliseconds()));

            /**
             * `ProducerBatch`放到deque的尾部
             */
            dq.addLast(batch);
            incomplete.add(batch);

            // Don't deallocate this buffer in the finally block as it's being used in the record batch
            buffer = null;

            return new RecordAppendResult(future, dq.size() > 1 || batch.isFull(), true);
        }
    } finally {
        if (buffer != null)
            free.dea llocate(buffer);
        appendsInProgress.decrementAndGet();
    }
}

sender线程处理流程

• 注：在new KafkaProducer<>(props);的时候会启动sender线程

sender源码

Sender
    run
        sendProducerData
            Cluster cluster = metadata.fetch();
             this.accumulator.ready(cluster, now);
            Map<Integer, List<ProducerBatch>> batches = this.accumulator.drain
            sensors.updateProduceRequestMetrics(batches);
            sendProduceRequests(batches, now);
        client.poll(pollTimeout, now);
            metadataUpdater.maybeUpdate(now);
                NetworkClient maybeUpdate()
            this.selector.poll(Utils.min(timeout, metadataTimeout, requestTimeoutMs));

sendProducerData

private long sendProducerData(long now) {
    /**
     * 获取到当前的集群信息
     */
    Cluster cluster = metadata.fetch();

    /**
     * 获取当前准备发送的partition(每个partition有一个leader broker， 没有则要更新元数据信息)
     *
     * ready方法返回
     * 1. 哪些TopicPartition所对应的Node节点是可以发送信息的。
     * 2. 下次检查节点是否ready的时间。
     * 3. 哪些TopicPartition对应的leader找不到。
     */
    // get the list of partitions with data ready to send
    RecordAccumulator.ReadyCheckResult result = this.accumulator.ready(cluster, now);

    // if there are any partitions whose leaders are not known yet, force metadata update
    if (!result.unknownLeaderTopics.isEmpty()) {
        // The set of topics with unknown leader contains topics with leader election pending as well as
        // topics which may have expired. Add the topic again to metadata to ensure it is included
        // and request metadata update, since there are messages to send to the topic.
        for (String topic : result.unknownLeaderTopics)
            this.metadata.add(topic);
        this.metadata.requestUpdate();
    }

    /**
     * NetworkClient检查broker leader网络连接情况，不符合条件的Node将从readyNodes中移除
     */
    // remove any nodes we aren't ready to send to
    Iterator<Node> iter = result.readyNodes.iterator();
    long notReadyTimeout = Long.MAX_VALUE;
    while (iter.hasNext()) {
        Node node = iter.next();
        if (!this.client.ready(node, now)) {
            iter.remove();
            notReadyTimeout = Math.min(notReadyTimeout, this.client.connectionDelay(node, now));
        }
    }

    /**
     * 上面确定了哪些broker leader是可以发送数据的，调用RecordAccumulator.drain()方法，获取待发送的消息集合
     * 返回<brokerId, ProducerBatch的list集合>的一个map结构，并设置TopicPartition为muted
     */
    // create produce requests
    Map<Integer, List<ProducerBatch>> batches = this.accumulator.drain(cluster, result.readyNodes,
            this.maxRequestSize, now);
    if (guaranteeMessageOrder) {
        // Mute all the partitions drained
        for (List<ProducerBatch> batchList : batches.values()) {
            for (ProducerBatch batch : batchList)
                this.accumulator.mutePartition(batch.topicPartition);
        }
    }

    /**
     * 判断过期的ProducerBatch，再调用failBatch()方法：会调用 ProducerBatch 的done()方法去释放空间
     */
    List<ProducerBatch> expiredBatches = this.accumulator.expiredBatches(this.requestTimeout, now);
    // Reset the producer id if an expired batch has previously been sent to the broker. Also update the metrics
    // for expired batches. see the documentation of @TransactionState.resetProducerId to understand why
    // we need to reset the producer id here.
    if (!expiredBatches.isEmpty())
        log.trace("Expired {} batches in accumulator", expiredBatches.size());
    for (ProducerBatch expiredBatch : expiredBatches) {
        failBatch(expiredBatch, -1, NO_TIMESTAMP, expiredBatch.timeoutException(), false);
        if (transactionManager != null && expiredBatch.inRetry()) {
            // This ensures that no new batches are drained until the current in flight batches are fully resolved.
            transactionManager.markSequenceUnresolved(expiredBatch.topicPartition);
        }
    }

    sensors.updateProduceRequestMetrics(batches);

    // If we have any nodes that are ready to send + have sendable data, poll with 0 timeout so this can immediately
    // loop and try sending more data. Otherwise, the timeout is determined by nodes that have partitions with data
    // that isn't yet sendable (e.g. lingering, backing off). Note that this specifically does not include nodes
    // with sendable data that aren't ready to send since they would cause busy looping.
    long pollTimeout = Math.min(result.nextReadyCheckDelayMs, notReadyTimeout);
    if (!result.readyNodes.isEmpty()) {
        log.trace("Nodes with data ready to send: {}", result.readyNodes);
        // if some partitions are already ready to be sent, the select time would be 0;
        // otherwise if some partition already has some data accumulated but not ready yet,
        // the select time will be the time difference between now and its linger expiry time;
        // otherwise the select time will be the time difference between now and the metadata expiry time;
        pollTimeout = 0;
    }
    /**
     * 会封装成ClientRequest，发送到NetworkClient,再调用NetworkClient.send()将ClientRequest写入KafkaChannel的send字段
     */
    sendProduceRequests(batches, now);

    return pollTimeout;
}

超时消息的处理

/**
 * 判断过期的ProducerBatch，再调用failBatch()方法
 *  会调用 ProducerBatch 的done()方法结束request
 *  会调用 accumulator.deallocate 去释放内存
 */
List<ProducerBatch> expiredBatches = this.accumulator.expiredBatches(this.requestTimeout, now);
// Reset the producer id if an expired batch has previously been sent to the broker. Also update the metrics
// for expired batches. see the documentation of @TransactionState.resetProducerId to understand why
// we need to reset the producer id here.
if (!expiredBatches.isEmpty())
    log.trace("Expired {} batches in accumulator", expiredBatches.size());
for (ProducerBatch expiredBatch : expiredBatches) {
    failBatch(expiredBatch, -1, NO_TIMESTAMP, expiredBatch.timeoutException(), false);
    if (transactionManager != null && expiredBatch.inRetry()) {
        // This ensures that no new batches are drained until the current in flight batches are fully resolved.
        transactionManager.markSequenceUnresolved(expiredBatch.topicPartition);
    }
}

/**
 * Get a list of batches which have been sitting in the accumulator too long and need to be expired.
 */
public List<ProducerBatch> expiredBatches(int requestTimeout, long now) {
    List<ProducerBatch> expiredBatches = new ArrayList<>();
    for (Map.Entry<TopicPartition, Deque<ProducerBatch>> entry : this.batches.entrySet()) {
        Deque<ProducerBatch> dq = entry.getValue();
        TopicPartition tp = entry.getKey();
        // We only check if the batch should be expired if the partition does not have a batch in flight.
        // This is to prevent later batches from being expired while an earlier batch is still in progress.
        // Note that `muted` is only ever populated if `max.in.flight.request.per.connection=1` so this protection
        // is only active in this case. Otherwise the expiration order is not guaranteed.
        if (!muted.contains(tp)) {
            synchronized (dq) {
                // iterate over the batches and expire them if they have been in the accumulator for more than requestTimeOut
                ProducerBatch lastBatch = dq.peekLast();
                Iterator<ProducerBatch> batchIterator = dq.iterator();
                while (batchIterator.hasNext()) {
                    ProducerBatch batch = batchIterator.next();
                    boolean isFull = batch != lastBatch || batch.isFull();
                    // Check if the batch has expired. Expired batches are closed by maybeExpire, but callbacks
                    // are invoked after completing the iterations, since sends invoked from callbacks
                    // may append more batches to the deque being iterated. The batch is deallocated after
                    // callbacks are invoked.
                    /**
                     * 判断是否超时，并从deque中删除
                     */
                    if (batch.maybeExpire(requestTimeout, retryBackoffMs, now, this.lingerMs, isFull)) {
                        expiredBatches.add(batch);
                        batchIterator.remove();
                    } else {
                        // Stop at the first batch that has not expired.
                        break;
                    }
                }
            }
        }
    }
    return expiredBatches;
}

/**
 * A batch whose metadata is not available should be expired if one of the following is true:
 * <ol>
 *     <li> the batch is not in retry AND request timeout has elapsed after it is ready (full or linger.ms has reached).
 *     <li> the batch is in retry AND request timeout has elapsed after the backoff period ended.
 * </ol>
 * This methods closes this batch and sets {@code expiryErrorMessage} if the batch has timed out.
 */
boolean maybeExpire(int requestTimeoutMs, long retryBackoffMs, long now, long lingerMs, boolean isFull) {
    /**
     * requestTimeoutMs 请求发送超时时间，默认 30s
     * now 当前时间
     * this.lastAppendTime ProducerBatch 创建的时间（也即上一次重试的时间）
     * now - this.lastAppendTime 大于 requestTimeoutMs 则说明 当前 ProducerBatch 超时了，还未发送出去
     * lingerMs ProducerBatch最多等待的时间一定要发送出去，默认：100ms
     * retryBackoffMs 重试的时间间隔
     *
     * 没设置重试，并且发送批次（batch.size）满了，并且配置请求超时时间（request.timeout.ms）小于【当前时间减去最后追加批次的时间】
     * 没设置重试，并且 request.timeout.ms 小于【创建批次时间减去配置的等待发送的时间（linger.ms）】
     * 设置重试，并且 request.timeout.ms 小于【当前时间-最后重试时间-重试需要等待的时间（retry.backoff.ms）】
     */
    if (!this.inRetry() && isFull && requestTimeoutMs < (now - this.lastAppendTime))
        expiryErrorMessage = (now - this.lastAppendTime) + " ms has passed since last append";
    else if (!this.inRetry() && requestTimeoutMs < (createdTimeMs(now) - lingerMs))
        expiryErrorMessage = (createdTimeMs(now) - lingerMs) + " ms has passed since batch creation plus linger time";
    else if (this.inRetry() && requestTimeoutMs < (waitedTimeMs(now) - retryBackoffMs))
        expiryErrorMessage = (waitedTimeMs(now) - retryBackoffMs) + " ms has passed since last attempt plus backoff time";

    boolean expired = expiryErrorMessage != null;
    if (expired)
        abortRecordAppends();
    return expired;
}

client.poll

调用NetworkClient.poll()方法，将KafkaChannel.send字段中保存的ClientRequest发送出去，并且还会处理服务端发回的响应、处理超时的请求、调用用户自定义的CallBack

• NetworkClient.poll()

/**
 * Do actual reads and writes to sockets.
 *
 * @param timeout The maximum amount of time to wait (in ms) for responses if there are none immediately,
 *                must be non-negative. The actual timeout will be the minimum of timeout, request timeout and
 *                metadata timeout
 * @param now The current time in milliseconds
 * @return The list of responses received
 */
@Override
public List<ClientResponse> poll(long timeout, long now) {
    if (!abortedSends.isEmpty()) {
        // If there are aborted sends because of unsupported version exceptions or disconnects,
        // handle them immediately without waiting for Selector#poll.
        List<ClientResponse> responses = new ArrayList<>();
        handleAbortedSends(responses);
        completeResponses(responses);
        return responses;
    }

    long metadataTimeout = metadataUpdater.maybeUpdate(now);
    try {
        this.selector.poll(Utils.min(timeout, metadataTimeout, requestTimeoutMs));
    } catch (IOException e) {
        log.error("Unexpected error during I/O", e);
    }

    // process completed actions
    long updatedNow = this.time.milliseconds();
    List<ClientResponse> responses = new ArrayList<>();
    handleCompletedSends(responses, updatedNow);
    handleCompletedReceives(responses, updatedNow);
    handleDisconnections(responses, updatedNow);
    handleConnections();
    handleInitiateApiVersionRequests(updatedNow);
    handleTimedOutRequests(responses, updatedNow);
    completeResponses(responses);

    return responses;
}

• selector poll

/**
 * Do whatever I/O can be done on each connection without blocking. This includes completing connections, completing
 * disconnections, initiating new sends, or making progress on in-progress sends or receives.
 *
 * When this call is completed the user can check for completed sends, receives, connections or disconnects using
 * {@link #completedSends()}, {@link #completedReceives()}, {@link #connected()}, {@link #disconnected()}. These
 * lists will be cleared at the beginning of each `poll` call and repopulated by the call if there is
 * any completed I/O.
 *
 * In the "Plaintext" setting, we are using socketChannel to read & write to the network. But for the "SSL" setting,
 * we encrypt the data before we use socketChannel to write data to the network, and decrypt before we return the responses.
 * This requires additional buffers to be maintained as we are reading from network, since the data on the wire is encrypted
 * we won't be able to read exact no.of bytes as kafka protocol requires. We read as many bytes as we can, up to SSLEngine's
 * application buffer size. This means we might be reading additional bytes than the requested size.
 * If there is no further data to read from socketChannel selector won't invoke that channel and we've have additional bytes
 * in the buffer. To overcome this issue we added "stagedReceives" map which contains per-channel deque. When we are
 * reading a channel we read as many responses as we can and store them into "stagedReceives" and pop one response during
 * the poll to add the completedReceives. If there are any active channels in the "stagedReceives" we set "timeout" to 0
 * and pop response and add to the completedReceives.
 *
 * Atmost one entry is added to "completedReceives" for a channel in each poll. This is necessary to guarantee that
 * requests from a channel are processed on the broker in the order they are sent. Since outstanding requests added
 * by SocketServer to the request queue may be processed by different request handler threads, requests on each
 * channel must be processed one-at-a-time to guarantee ordering.
 *
 * @param timeout The amount of time to wait, in milliseconds, which must be non-negative
 * @throws IllegalArgumentException If `timeout` is negative
 * @throws IllegalStateException If a send is given for which we have no existing connection or for which there is
 *         already an in-progress send
 */
@Override
public void poll(long timeout) throws IOException {
    if (timeout < 0)
        throw new IllegalArgumentException("timeout should be >= 0");

    boolean madeReadProgressLastCall = madeReadProgressLastPoll;
    clear();

    boolean dataInBuffers = !keysWithBufferedRead.isEmpty();

    if (hasStagedReceives() || !immediatelyConnectedKeys.isEmpty() || (madeReadProgressLastCall && dataInBuffers))
        timeout = 0;

    if (!memoryPool.isOutOfMemory() && outOfMemory) {
        //we have recovered from memory pressure. unmute any channel not explicitly muted for other reasons
        log.trace("Broker no longer low on memory - unmuting incoming sockets");
        for (KafkaChannel channel : channels.values()) {
            if (channel.isInMutableState() && !explicitlyMutedChannels.contains(channel)) {
                channel.unmute();
            }
        }
        outOfMemory = false;
    }

    /* check ready keys */
    long startSelect = time.nanoseconds();
    int numReadyKeys = select(timeout);
    long endSelect = time.nanoseconds();
    this.sensors.selectTime.record(endSelect - startSelect, time.milliseconds());

    if (numReadyKeys > 0 || !immediatelyConnectedKeys.isEmpty() || dataInBuffers) {
        Set<SelectionKey> readyKeys = this.nioSelector.selectedKeys();

        // Poll from channels that have buffered data (but nothing more from the underlying socket)
        if (dataInBuffers) {
            keysWithBufferedRead.removeAll(readyKeys); //so no channel gets polled twice
            Set<SelectionKey> toPoll = keysWithBufferedRead;
            keysWithBufferedRead = new HashSet<>(); //poll() calls will repopulate if needed
            pollSelectionKeys(toPoll, false, endSelect);
        }

        // Poll from channels where the underlying socket has more data
        pollSelectionKeys(readyKeys, false, endSelect);
        // Clear all selected keys so that they are included in the ready count for the next select
        readyKeys.clear();

        pollSelectionKeys(immediatelyConnectedKeys, true, endSelect);
        immediatelyConnectedKeys.clear();
    } else {
        madeReadProgressLastPoll = true; //no work is also "progress"
    }

    long endIo = time.nanoseconds();
    this.sensors.ioTime.record(endIo - endSelect, time.milliseconds());

    // we use the time at the end of select to ensure that we don't close any connections that
    // have just been processed in pollSelectionKeys
    maybeCloseOldestConnection(endSelect);

    // Add to completedReceives after closing expired connections to avoid removing
    // channels with completed receives until all staged receives are completed.
    addToCompletedReceives();
}
